Description

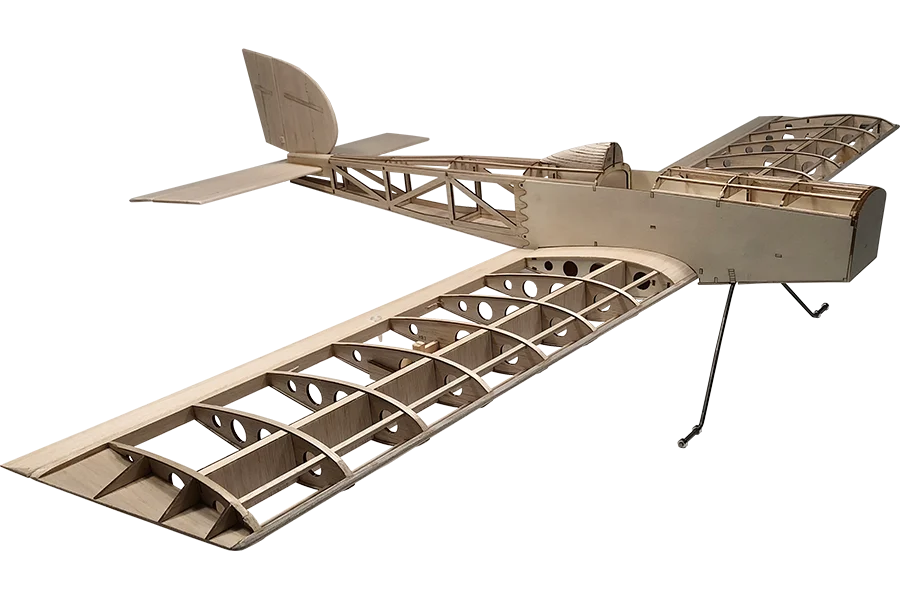

Sky Ranger 40 Laser-Cut R/C Kit
Overview:
The Sky Ranger 40 is as much fun to build as it is to fly. Using updated design techniques and laser-cut precision, we’ve designed this kit so most any modeler can successfully assemble it in a short amount of time.
This all-around sport model’s retro design looks great in the air and makes you look like an ace pilot. Loop it, roll it, spin it, snap it, and just have a great time flying it. Power the Sky Ranger 40 with either an electric or glow powerplant.
We’ve designed the fuselage with a built-in hatch so you have quick access to either your LiPo batteries or fuel tank.
Features:
- A Great Sportster
Whether you like gentle cruising, or prefer to tear up the sky, the Sky Ranger 40’s wide flight envelope makes it a blast to fly!
- WEB-LOCK Construction
There’s nothing else like it. Build our wings, straight and true – with a minimum amount of fuss.
- Premium USA Hardware
Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
- Rugged 3/16″ Main Gear
We include sturdy, pre-bent main gear and wheel collars. The 3/16″ diameter wire can absorb quite a bit of abuse for those no-so-good landings.
- Front hatch
Held in place with magnets, this hatch gives you easy access to batteries or fuel.
- Windscreen
Also included is a clear, pre-formed plastic windscreen.
Required Radio:
4 channel system(2) 40-70 in./oz. servos for elevator and rudder;(2) 40-70 in./oz. servos for ailerons;(1) 40-70 in./oz. servo for throttle (if using a glow engine)
Required Power:
Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
Glow (.40-.45 engine, 6 ounce tank, fuel tubing)
Additional items needed to complete the Sky Ranger 40 kit:
• 4 channel radio and servos
• Propeller
• Engine/Motor mount & mounting hardware
• “Y” servo harness (for ailerons)
• Pushrods (two 5” for ailerons, two 24” for elevator & rudder, one 12” for throttle if glow powered)
• Clevises for the pushrods (8 if electric, 10 if glow)
• Two 3” diameter main wheels
• 1 – tailwheel
• Covering
