Description

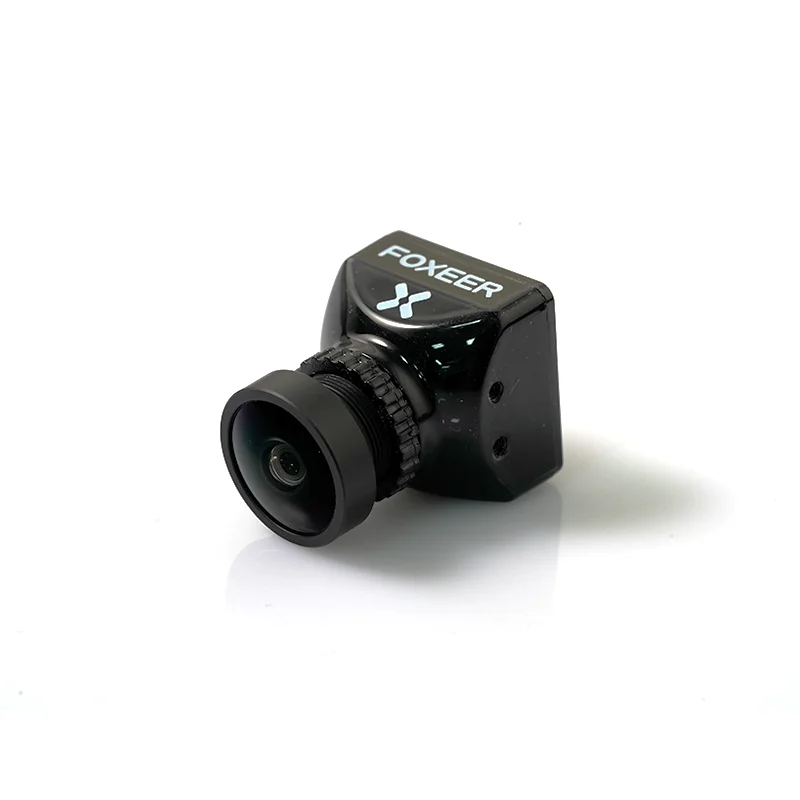

The Foxeer Cat 4 Mini is an ultra-low-light starlight FPV camera designed for pilots who demand clean image quality, low latency, and excellent night performance in a compact mini form factor.
Built around a 1/3″ CMOS sensor with a large-aperture low-light lens, the Cat 4 Mini delivers outstanding visibility in near-dark conditions while supporting flexible aspect ratios and full OSD menu control.
Key Features:
- Extreme starlight performance with ultra-low noise
- Low-latency analog FPV output
- Switchable 4:3 / 16:9 aspect ratio
- PAL / NTSC switchable
- Large-aperture low-light M12 lens
- Optimized for LED lighting environments
- Supports OSD menu control via Foxeer flight controllers
Camera Specifications:
- Sensor Type: 1/3″ CMOS
- Resolution: 1200TVL
- Video Output: CVBS Analog
- Minimum Illumination: 0.00001 Lux
- Lens: M12 2.1mm Low-Light Lens
- Aspect Ratio: 4:3 (Default) / 16:9 Switchable
- TV System: PAL (Default) / NTSC Switchable
Field of View:
- 4:3 Mode: FOV-H 95° / FOV-V 72° / FOV-D 120°
- 16:9 Mode: FOV-H 95° / FOV-V 53° / FOV-D 110°
Image Processing:
- Shutter Speed: PAL 1/25–1/10000s, NTSC 1/30–1/10000s
- White Balance: Auto
- DNR: 3DNR
- WDR: 100dB
- Day / Night Modes: EXT / Auto / Color / B&W
OSD & Control:
- Flight OSD: Voltage / Camera Title / Time
- Menu Control: Supported via OSD remote / Foxeer FC
- Languages: English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, Greek
Electrical & Environmental:
- Input Voltage: 5V–20V
- Current Consumption: 95mA ±15% @ 12V
- Operating Temperature: -10°C to 50°C (RH ≤90%)
- Operating Humidity: 20–80%
- Storage Temperature: -20°C to 70°C
Physical Specifications:
- Mounting Size: 22 × 22mm (Mini)
- Dimensions: 22 × 22mm
- Weight: 11.8g (excluding cable)
Package Contents:
- 1× Foxeer Cat 4 Mini FPV Camera
- 1× OSD Board
- 1× 2-pin OSD Cable
- 1× Servo Cable
- 4× Mounting Screws
- 4× Gasket Rings
