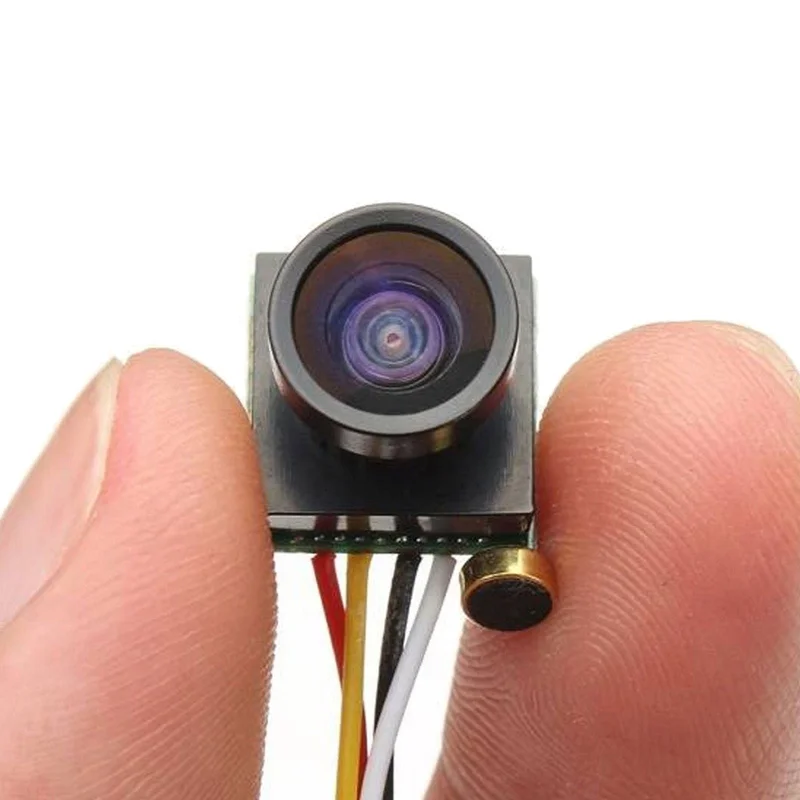

600TVL Micro FPV Camera 1.8mm 170 Degree Lens with Microphone NTSC/PAL (3g)

Description

Weighing in at only 3 grams, this is an excellent option for your smaller FPV quadcopter video system.

Specifications:

• Resolution: 600TVL
• Camera Dimensions: 12.5mm * 12.5mm * 17mm
• Illumination: 0.5LUX
• Format: NTSC
• Power supply range: 3.7-5V ONLY
• Audio Lens: Wide-angle 1.8mm (170 degree)
• Image sensor:1/4 CMOS image sensor
• Sensitive area: 3.5964mm x 2.7084mm
• 648 pixels (horizontal) x 488 (vertical) 648 (horizontal) x 488 (vertical)
• Scanning Frequency Horizontal: 15.625KHz
• Vertical: 50Hz
• level: 15.7343KHz
• Vertical: 60Hz
• Electronic Shutter 1 / 50-1 / 80000 (sec) 1 / 60-1 / 80000 (sec)
• SNR 48dB (AGC OFF)
• Minimum illumination : 0.1 Lux / F1.2
• Composite video signal :1.0Vp-p 75 ohm
• Standard Lens :1.8 mm
• Specifications PCB: 20mm*20mm
• Power: DC5V ± 10% 70mA ± 10%
• Operating temperature :-10 Degrees C ~ 60 Degrees C RH95% Max

Package Contents:

• 1 x 700TVL Wide-Angle Micro Lens Camera
