Description

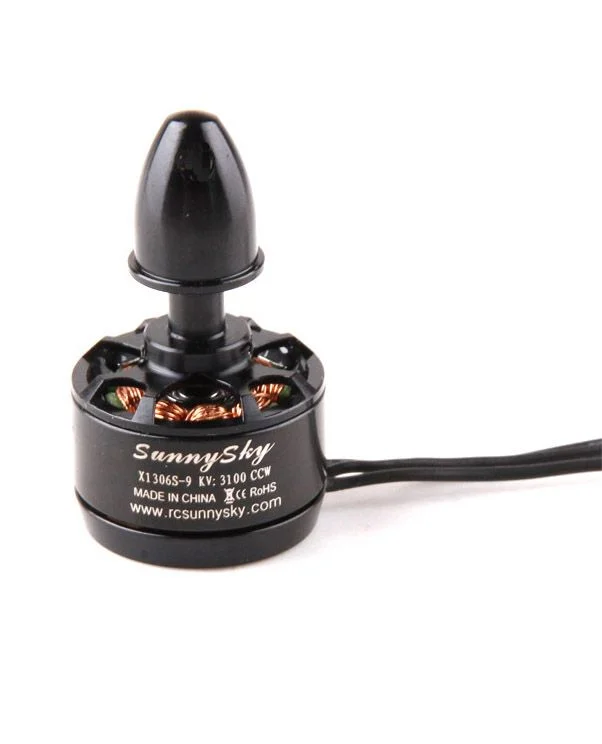

Please note that this package only includes one SunnySky X1306S 3100KV CCW Brushless motor and does not come with screws or motor mounts. This motor is designed for 200 size multirotors and is compatible with 2S LiPo batteries and 4-6 inch propellers. Each motor has a weight of approximately 11 grams.
Here are the specifications of the motor:
- Stator Diameter: 13mm
- Stator Thickness: 6mm
- Number of Stator Arms: 9
- Number of Stator Poles: 12
- Motor KV: 3100
- No-load Current(A/10V): 0.6A
- Motor Resistance: 0.28Ω
- Max Continuous Current: 8A/30S
- Max Continuous Power: 75W
- Weight: 11g
- Outside Diameter: 17.7mm
- Shaft Diameter: M4
- Body Length: 14.5mm
- Overall Shaft Length: 27.5mm
- Max LiPo Cell: 2S
- Recommended Propeller Size (inch): 5043
