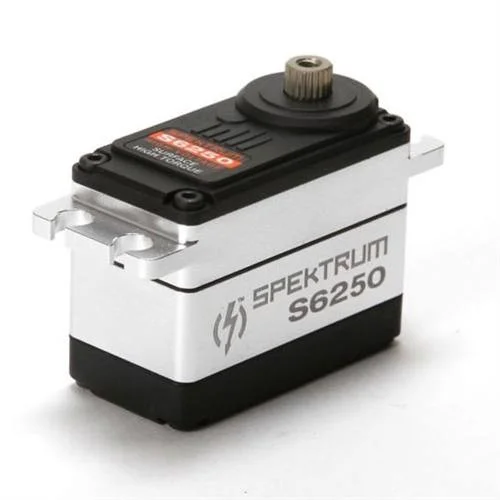

Spektrum S6250 High-Torque HV Digital Servo

Description

This is the Spektrum S6250 High-Torque High-Voltage Digital Servo. These servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Features

• Removable wire harness with different lengths available
• 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
• Aluminum case for good heat dissipation
• Aluminum mounting tabs
• NMB dual main bearings
• 23T output shaft
• Waterproof
• 1-Year Limited Warranty

Specifications

Size Category: Standard
Type: Digital
Application: 1/10 Buggy, Truck, 1/8 Buggy, Truck
Torque: 271 oz-in (19.5kg-cm) @ 6V; 339 oz-in (24.4kg-cm) @ 7.4V; 382 oz-in (27.5kg-cm) @ 8.4V
Speed: 0.13 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.09 sec/60 deg @ 8.4V, at no load
Length: 1.61 in (41mm)
Width: 0.82 in (20.8mm)
Height: 1.25 in (31.8mm)
Weight: 2.3 oz (65.2g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Z-connector, removable
Gear Type: Metal
Gear Material: Steel, Aluminum
Current Draw Idle: 9.8 mA @ 6.0V
Current Draw Stall: 4900mA @ 6.0V
Deadband: 4µs
