Description

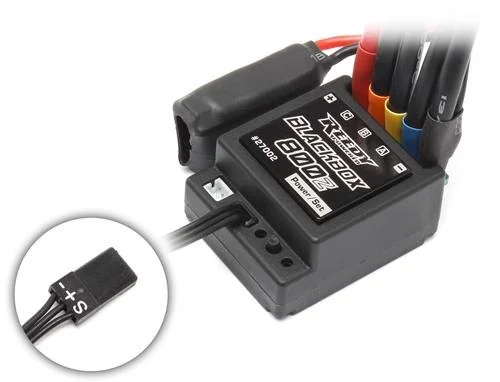

This is the Reedy Blackbox 800Z Zero-Timing ESC. Track tested and competition proven, Reedy’s Blackbox 800Z Zero-Timing Sensored Brushless Competition ESC is a simple to use, economical, and powerful ESC for Spec class racers. Excellent throttle and brake feel, a wide range of adjustability, and robust hardware make the Blackbox 800Z suitable for a variety of Spec racing applications.
Features
- Lightweight plastic case with compact footprint
- Low-profile heat sink
- Fully adjustable brake and throttle functions
- On-board, single-button programming
- Zero-timing ROAR-approved software
- Low-resistance circuitry
- Precision throttle and brake control
- Solder tabs for easy wire placement
- 13-gauge power wires
- Compact external capacitor board
- Competition proven
Adjustable Settings
- Operation Mode – Select Forward/Brake (F/B) or Forward/Brake/Reverse (F/B/R) operation
- Drag Brake – Adjust automatic braking strength when the throttle trigger is returned to neutral
- Power Profile – Increase or decrease punch
- Drive Frequency – Adjust to create a smoother or more aggressive throttle feel
- Brake Frequency – Adjust to create a smoother or more aggressive brake feel
- Restore Default – Restore the factory default settings
Specifications
Voltage Input: 7.4V / 2S LiPo
On Resistance (Ohm): 0.0004
Continuous Current (Amp): 80
Dimensions (mm): 40.2 x 31.0 x 18.8
Weight without Wires (g): 37
Motor Limit: 10.5T
SBEC: 6.0V / 3A
