PROTO25 Micro Long Range Ripper Frame Kit O4 Pro (Violet)

Description

PROTO25 Micro Long Range Ripper Frame Kit O4 Pro (Violet).

Introducing PROTO25. A sub250g 2.5″ born from my very dreams. I always wanted a low key quad with long range, GPS, 4K recording, no props in view in an ultralight and compact package. P25 is easy to pack in your bag, stable, powerful, sick looking, and built for ripping up epic parks and urban jungles with ease!

~PattyFlipz

Features:

1) Squashed X geometry with no props in view even in ultrawide mode

2) Aesthetically designed Toray T700 plain weave matte carbon fiber frame

3) 36 Titanium M2 screws for maximum weight reduction and performance

4) Multi-color WS2812 LED light included

5) VTX Quick swap feature. Easily move or reinstall quickly

6) Designed to be universal. Frame works with action cameras, analog, HD Zero, etc.

• SPECS

  Top plate: 1.5mm

  Base plate: 3mm

  Electronics Mounting: M2 20×20, M2 25.5×25.5

  Maximum Electronic Component Size: 40×40

  Motor Mount: 9×9

  Max prop size: 2.5″

  Action Camera / Accessories Mounting: Top Plate

  Battery Strap Mounting: Top mount, Toilet Tank & Undermount

  Recommended Camera Mounting Size: 19mm ~ 20mm (Variable)

  Stand off height: 28mm

  Stand off width: 22mm

  Wheelbase: 97.32mm x 66.51mm

  Antenna mounting size: 3~4mm Post

  Frame weight: 17.74g (no TPU)

  Build weight potential: 115g ~ 140g (no lipo)

  Top Speed: 130kph

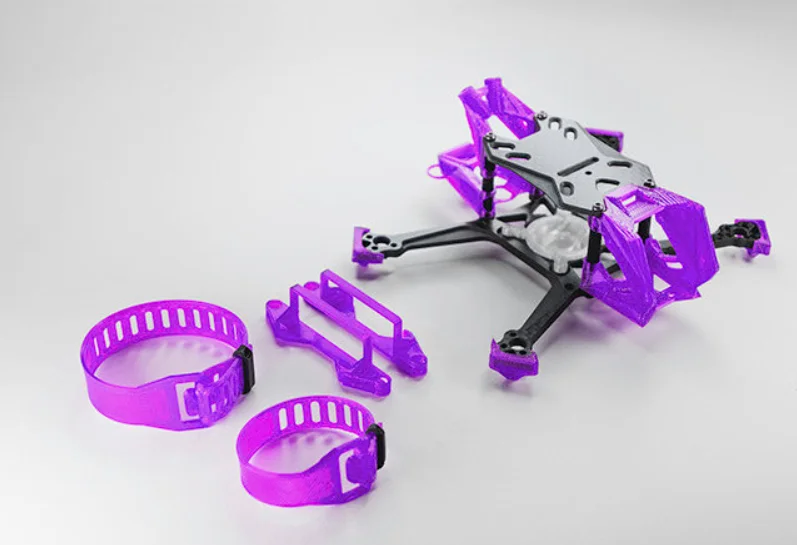

  • INCLUDES

    T700 Carbon Fiber Plates

    x1 Top plate

    x1 Base plate

    3D Prints

    x1 Protostrap S (smaller batteries)

    x1 Protostrap MS (medium/small sized batteries)

    x1 Antenna Mount

    x1 GPS + RX Tray (Only known to fit GOKU GM10 Nano V3 GPS)

    x1 Camera Cage

    x1 VTX quick swap Holder (2 pc)

    x1 LED Light Holder

    x1 Action camera base mount (Not in DJI O4 AU Pro Kit)

    x1 Feet Set (4 pc)

    x1 20×20 to 25.5×25.5 Adapter (Not in DJI O4 AU Pro Kit)

    Hardware

    x1 Tessegrip – super sticky customizable battery pad

    x4 M2x28 aluminum stand offs

    x4 M2x5 nylon spacers

    x2 M2x4 screws (camera) (x4 in DJI O4 AU Pro Kit)

    x2 M2 washers (camera)

    x13 M2x5 Ti screws (motors, action cam mount)

    x8 M2x6 Ti screws (frame)

    x8 M2x7 Ti screws (props)

    x4 M2x12 Ti screws (AIO)

    x4 M2x22 screws (stack) (Not in DJI O4 AU Pro Kit)

    x1 M3x14 Ti screw (action cam bolt) (Not in DJI O4 AU Pro Kit)

    x8 M2 nylon nut (AIO, stack, action cam mount stay)

    x1 M3 thin nut (action cam nut) (Not in DJI O4 AU Pro Kit)

    x1 WS2812 LED (light holder)

    x4 Zip tie

    x1 30awg wire set (LED to FC)

    Recommended Parts:

    VTX- DJI O4 Pro

    FC-  Flywoo GOKU GN 745 45A AIO 32 bit (MPU 6000) V3

    Motors:  T-Motor F1404-4600KV FPV Racing Motor 3-4S

    More Motor Choices.

    Props: Avan Rush 2.5 inch Prop-RED

    GPS- GOKU Nano GM10 V3.1 GPS

    Other AIO FC’s.

    Battery: Tattu Lipo Battery 850mah 4S 150C
