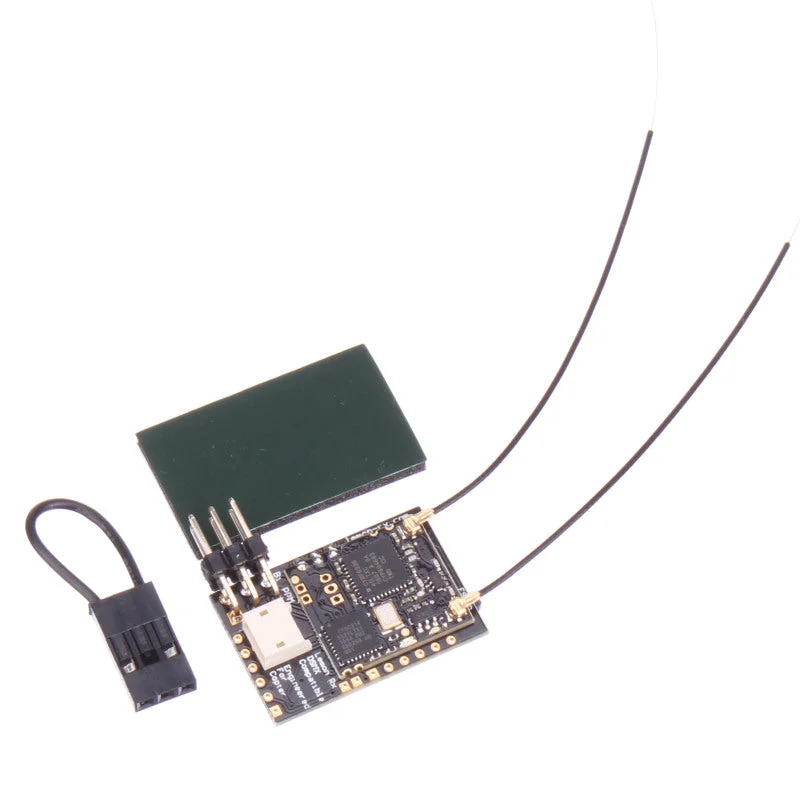

Micro Mini Receiver 4Ch PWM SBUS Protocol D8 X9D XJT DJT DFT DHT

Description

X9D – Select D8 mode, power on receiver press and hold BIND, then led light, select BIND on transmitter, receiver led off means binding is completed, transmitter exit binding mode, release BIND key and re-power.

DJT, DFT – Hold the TX module button and power on transmitter, at this point the TX module get into binding mode. Power on receiver press and hold BIND, LED off when binding completed, release BIND key after transmitter restart, finally restar receiver.

XJT – Dip switch select D8 mode, and then the same way as above.

Throttle – Use third channel for throttle

Specifications:

• Item Name: 2.4G mini receiver
• Channel: 4CH
• Weight: 2.2g
• Resolution: 1024
• PWM Output: Yes
• Operating Voltage: 3.5-10V
• Current: 50MA
• Antenna Length: 100mm
• Dimension: 11mm*24.5mm
• Control Range: >500M+
• Compatibility: Compatible with frsky X9D (D8 Mode), XJT (D8 Mode), DJT, DFT, DHT

Package Contents:

• 1 x FRSKY Protocol 2.4GHz 4-Channel Mini Receiver
