Description

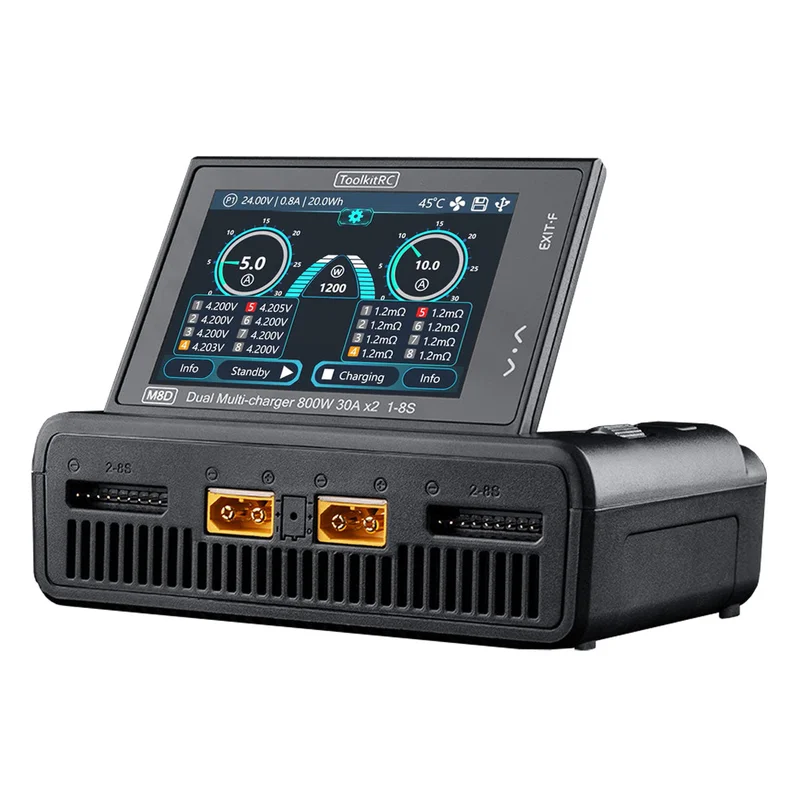

The M8D is ToolkitRC’s first touchscreen charger. It’s packed with convenient features like 10 charging presets, SD card data logging, discharging modes, and extreme power output in synchronized mode.
Features
- 800W Charging Power (1600W in Synchronized Mode!)
- Intuitive Touchscreen Interface
- 80 Degree Adjustable Screen Tilt
- 65W USB-C Fast Charging
- Recycle, Discharge and Battery Destruct Modes
- Dual Auto Adjusting Fans
- SD Card Data Logging
Specifications
- Input Voltage: DC 10.0-49.0V @MAX 60A
- Battery Type:
- Lipo, LiHV, LiFe, Lion, LTO @ 1-8S
- NiMh @ 1-20S
- Pb @ 1-15S
- Balance Current: 2000mA @ 4.2V
- Charging Power:
- 800W @MAX 30A*2
- 1600W @MAX 50A (SYNC Mode)
- Discharging Power:
- 800W @MAX 30A Recycle Mode
- [email protected] Normal Mode
- USB-C Power: 5.0-20.0V @65W
- LCD: IPS 3.5 inch LCD 480×320 Resolution Touchscreen
- Dimensions: 130x97x42mm
- Weight:450g
Includes
- 1x M8D Charger
- 1x XT90 Input Cable
- 1x USB-C Cable
- 1x Screen Protector
- 1x Manual
