Description

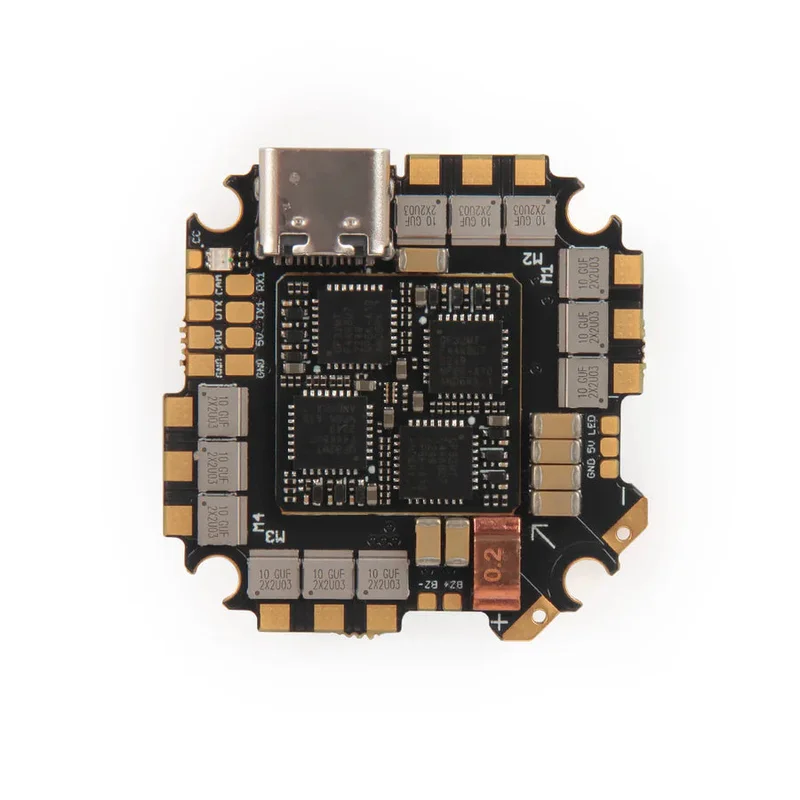

The JHEMCU GF30F745-ICM is a premium flight controller designed for FPV pilots who demand precision, power, and advanced features. Running on the STM32F745 216MHz processor and equipped with the ultra-precise ICM-42688-P gyro, this board is ready for racing, freestyle, or cinematic drones. It supports Betaflight 4.5.0 firmware and is packed with key functions like a barometer, blackbox, GPS and compass support, and HD O3 system compatibility.
With 7 UARTs, ELRS, TBS, SBUS, IBUS, DSM2/DSMX receiver support, and dual BEC outputs (5V/2.5A and 10V/2A), the GF30F745-ICM gives you ultimate flexibility. Its robust 30.5×30.5mm mounting and Type-C USB connection make integration smooth for any pro-level build.
Features:
- STM32F745 216MHz processor with ICM-42688-P gyro for high-speed, stable control
- Full Betaflight support with 16MB blackbox, barometer, GPS, compass, and HD O3 compatibility
- Dual BEC outputs: 5V/2.5A and 10V/2A for powering peripherals
- Supports ELRS, TBS, SBUS, IBUS, DSM2, DSMX receiver protocols
- Type-C USB, 7 UARTs, LED programming, current and voltage sensors, and DFU button
Specifications:
- Master: STM32F745VG (216MHz)
- Gyroscope: ICM-42688-P
- Barometer: SPL06
- OSD chip: AT7456E
- Blackbox: 16MB
- Input voltage: 3–6S
- BEC outputs: 5V/2.5A, 10V/2A
- UARTs: UART1–UART7
- Receiver support: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
- ESC signal: DSHOT150, DSHOT300, DSHOT600
- GPS: Yes
- Compass: Yes
- HD O3: Yes
- I2C interface: Yes
- LED programming: Yes
- Buzzer support: Yes
- USB: Type-C
- Current port: Yes
- Voltage sensor: Yes
- DFU button: Yes
- Weight: 7.5g
- Dimensions: 36mm x 36mm
- Mounting holes: 30.5mm x 30.5mm, 4mm
- Firmware: Betaflight_4.5.0_JHEF745-ICM.HEX
Package Contents:
- 1x JHEMCU GF30F745-ICM Flight Controller
