Description

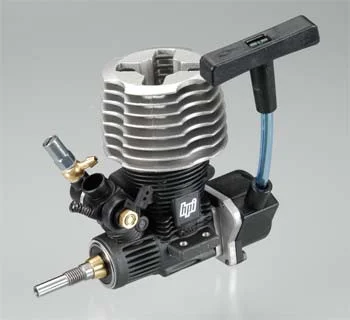

This is the HPI Nitro Star G3.0 Engine with Pull-Starter. This is the stock replacement engine in the HPI Firestorm truck. This will also fit in place of the T-15 engine in vehicles like the MT2 and Nitro Evo 3 vehicles, and also in place of the 18SS engine in the HPI vehicles. This is a .18-size, or 3.0cc engine. This powerful rotary carb engine works very well in off-road applications, and will fit in place of most .12 to .18 size small block side-exhaust engines. This has a two-year limited warranty.
FEATURES
- Composite body rotary valve carburetor with 5.5mm bore
- Silver colored cooling head
- SG (pilot) type crankshaft
- Two year limited warranty
INCLUDES
HPI Nitro Star G3.0 Engine with Pull Start
Instruction manual
R5 cold glow plug
Foam air cleaner assembly with four zip ties
Brass collet
SPECS
Displacement: .18 cu in (3.0cc)
Distance Between Mounting Holes Same Side: 0.43″ (11mm)
Distance Between Mounting Holes Opposite Side: 1.22″ (31mm)
Height/Bottom Mounting Flanges to Top of Cylinder Head: 2.99″ (76mm)
Height/Bottom of Crankcase to Top of Cylinder Head: 3.5″ (89mm)
Length from Pull Starter to End of Crankshaft: 4.13″ (105mm)
Length from Pull Starter to Front Bearing: 3.3″ (75.3mm)
Length from Center of Crankcase to End of Crankshaft: 2.96″ (75mm)
Diameter of Carburetor Bore: 0.21″ (5.5mm)
High Speed Needle Setting: Turn clockwise in 1/8 turn increments to lean fuel mixture. Do not exceed 2-1/2 turns from flush Idle Adjustment: Adjust for about 0.04″ (1mm) gap between slide valve and carb body at bore opening
Low Speed Needle: No adjustment info
