Description

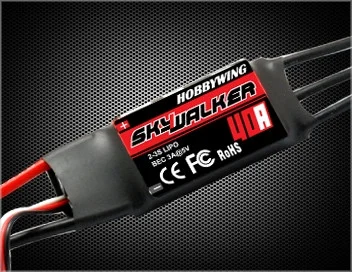

Hobbywing Skywalker 40A Brushless ESC


1 Product Specifications

1.1 Output capability: Continuous current 40A, short-time current 55A (less than 10 seconds);
1.2 Power input: 2-3 lithium battery pack or 5-9 NiMH / NiCd battery pack;
1.3 BEC Output:5V @ 3 [/ email] V (linear regulator mode, linear mode);
1.4 Maximum speed: 2-pole motor 210000 rev / min, 6-pole motor 70,000 rev / min, 12 poles, 35,000 rev / min;
1.5 Dimensions: 68 mm (L) * 25 (width) × 8 mm (height);
1.6 Weight: 35g;


2 Product Features

2.1 Safety function: When the power is turned on, regardless of the throttle lever in any position and does not start the motor immediately to prevent personal injury;
2.2 Throttle range calibrated function: to adapt to different throttle travel difference, improve throttle response linearity;
2.3 programmed item (can be set provided in the throttle or card, LED parameters):
