Description
Product Details
Key Features
- Length: 5.2″ (132mm)
- Width: 2.5″ (63mm)
- Height: 0.94″ (24mm)
In The Box

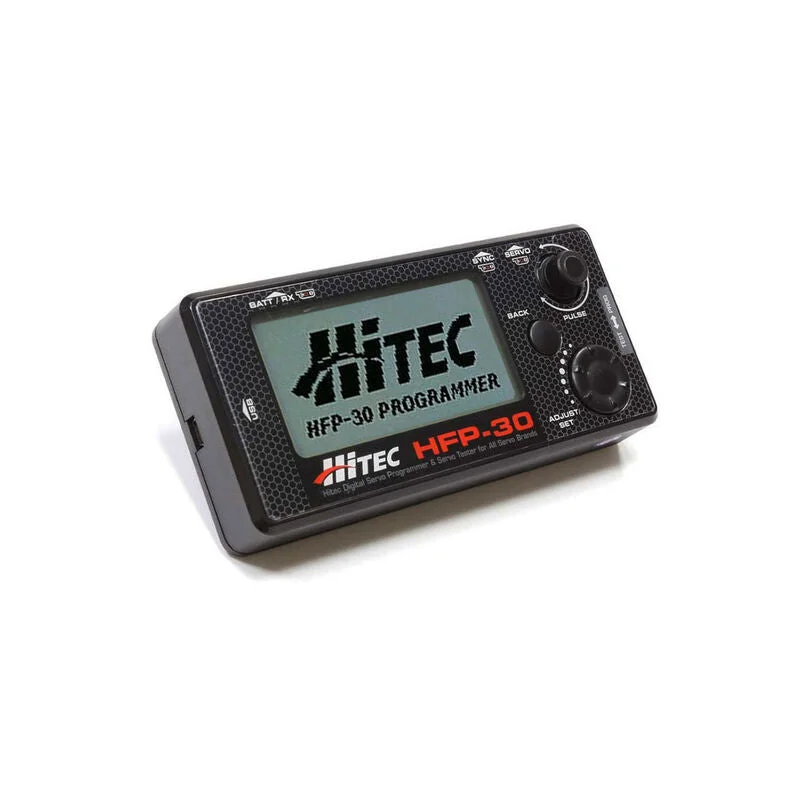

- Digital Servo Programmer and Universal Servo Tester with Instructions
The HFP-30 is powered by a user provided 4.8VDC to 7.4VDC battery pack plugged into the Batt/RX slot. Optionally, a receiver with the correct adapter can power the unit.
Note: Make sure the battery voltage corresponds to the servos being used. Do not use a 7.4V battery with a servo designed for 6V and under, or damage may occur to the servo.
Features
- For the Hitec BLDC/D-series servos; Programs the Servo Speed, Dead Band Width, Direction of Rotation, Fail Safe and Position Program (Neutral/Left/Right)
- For the HS-7000 series G2 Digital Servos; Servo Speed, Dead Band Width, Direction of Rotation, Fail Safe and Position Program (Neutral/Left/Right)
- For the HS-5000 Digital Micro Servos; Programs the Servo Speed, Dead Band Width, Direction of Rotation, Fail Safe and Position Program (Neutral/Left/Right)
- Performs manual and automatic test and receiver pulse width on any brand of servo
- Large easy-to-read LCD screen
- Operates on 4.8-8.4V range
