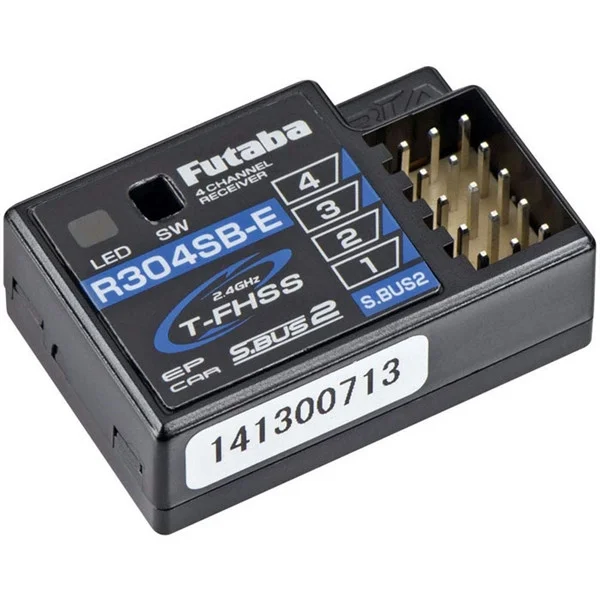

Futaba R304SB-E 4-Channel 2.4GHz TFHSS Telemetry Receiver

Description

This is the Futaba R304SB-E 4-Channel 2.4GHz T-FHSS S.BUS2 Telemetry Receiver for electric RC vehicles.

Features

• Only for use with electric powered RC vehicles (do not use with glow or gasoline powered vehicles)
• Telemetry data can be displayed and checked at the transmitter by connecting the telemetry sensor to the S.BUS 2 port of this receiver
• Built-in antenna
• Normal and high-speed mode, normal accepts any type of servos* or the peripheral, high speed mode accepts digital servos, including BLS series and most peripheral equipment such as brushless ESC’s
• One year limited warranty through Hobby Services beginning at date of purchase

*For best results, digital servos should be used

Includes: Futaba R304SB-E 2.4GHz T-FHSS S.BUS2 4-ch Telemetry Receiver with Instructions

Requires: Digital servos recommended

Specifications
System: T-FHSS system at Normal/High speed mode (auto detection)
Receiving Range: 230′ (70m) under best conditions
Power Requirement Rated Voltage: 4.8-7.4V
Usable Voltage: 3.5-8.4V
Size: 1.38 x 0.91 x 0.33″ (35.1 x 23.2 x 12.5mm)
Weight: 0.23oz (6.7g)
F/S and Battery F/S Function: Sets according to transmitter used
Battery F/S Voltage: Arbitrarily set with transmitter

Comments: Not compatible with the Futaba S-FHSS, FHSS, FASSTest or FASST transmitters.
