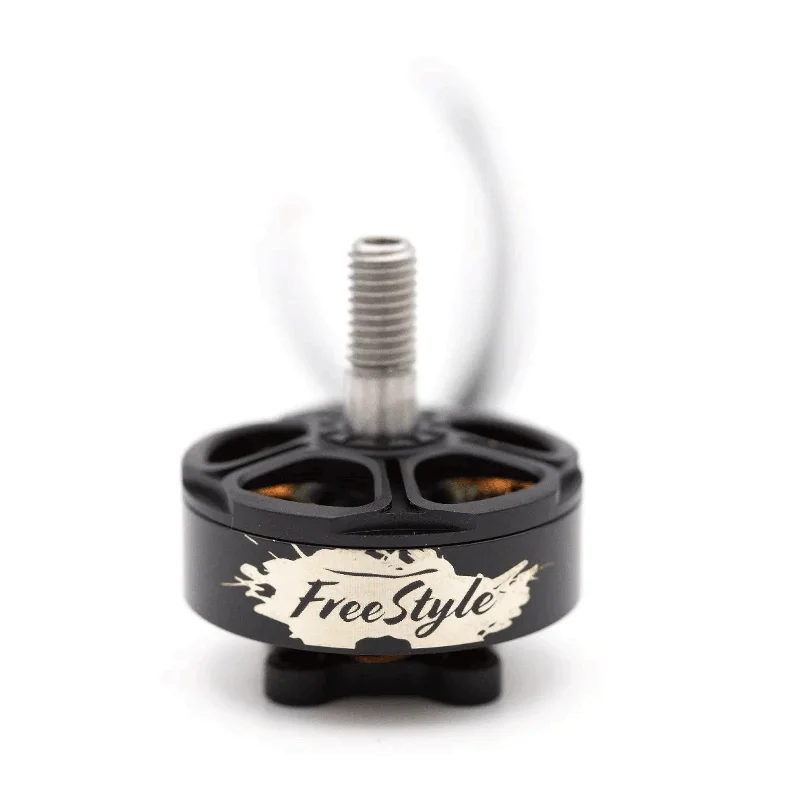

EMAX Freestyle 2306 Brushless Motor 3-6S 1700KV / 2400kV

Description

1700KV Motor Specifications:

• Motor Dimensions: 27.8 x 31.2 mm
• Framework: 12N14P
• Bearing Shaft: 4 mm
• Lead: 20# AWG, 140 mm
• Weight: 28.6 g (without Silicone Wire)
• Idle Current (10V): 0.9 A
• Internal Resistance: 78 ohm
• No. of Cells: 3-6S
• Propeller Size: 5″-5.5″
• Peak Current (6S): 37.2 A
• Max Power (6S): 937.4 W

2400KV Motor Specifications:

• Motor Dimensions: 27.8 x 31.2 mm
• Framework: 12N14P
• Bearing Shaft: 4 mm
• Lead: 20# AWG, 140 mm
• Weight: 28.7 g (without Silicone Wire)
• Idle Current (10V): 1.5 A
• Internal Resistance: 45 ohm
• No. of Cells: 3-4S
• Propeller Size: 5″-5.5″
• Peak Current (4S): 44.3 A
• Max Power (4S): 744.2 W
