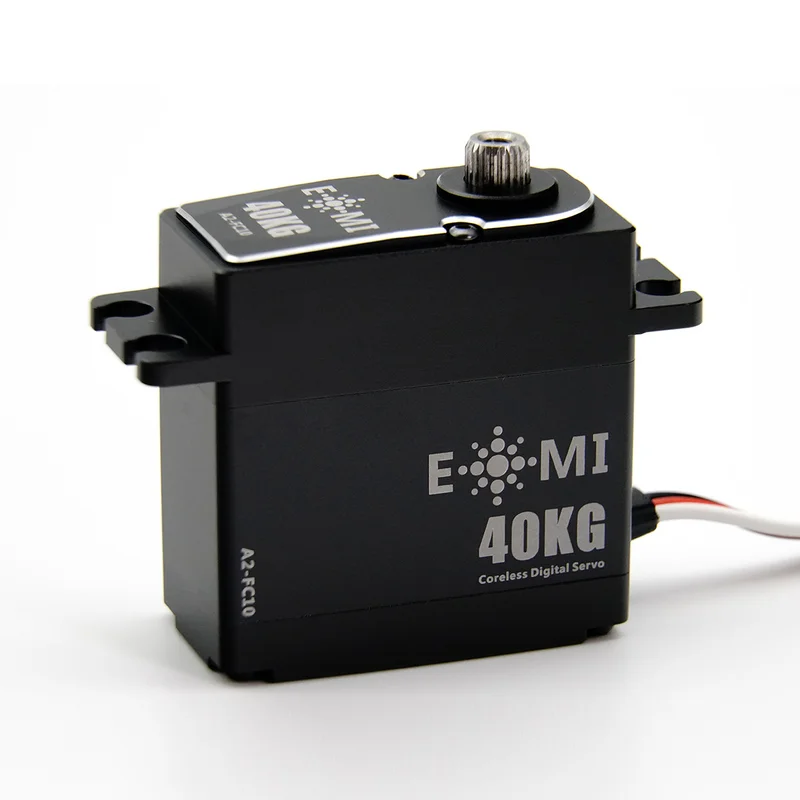

E-MI A2-FC10 40KG Large Torque Extended Type Coreless Digital Servo

Description

Item No. A2-FC10

Modulation:Digital

Motor Type:Coreless

Bearing Type:Metal

Gear Type:Metal

Operating Voltage:4.80V-8.40V

Speed:
4.8V: 0.20sec/60°
6.0V: 0.17sec/60°
7.4V: 0.15sec/60°
8.4V: 0.14sec/60°

Stall Torque:
4.8V:27kgf.cm (375 oz.in)
6.0V:31kgf.cm (431 oz.in)
7.4V:37kgf.cm (514 oz.in)
8.4V:41kgf.cm (569 oz.in)

Case:Full Metal

Weight: 79g(2.79oz)

Dimensions:40x20x41.5mm (1.570.79×1.63in)

▶For Balsa Fixed Wing Aircraft and 1:8 EP Crawler,Off-Road RC Car,etc.
