Description

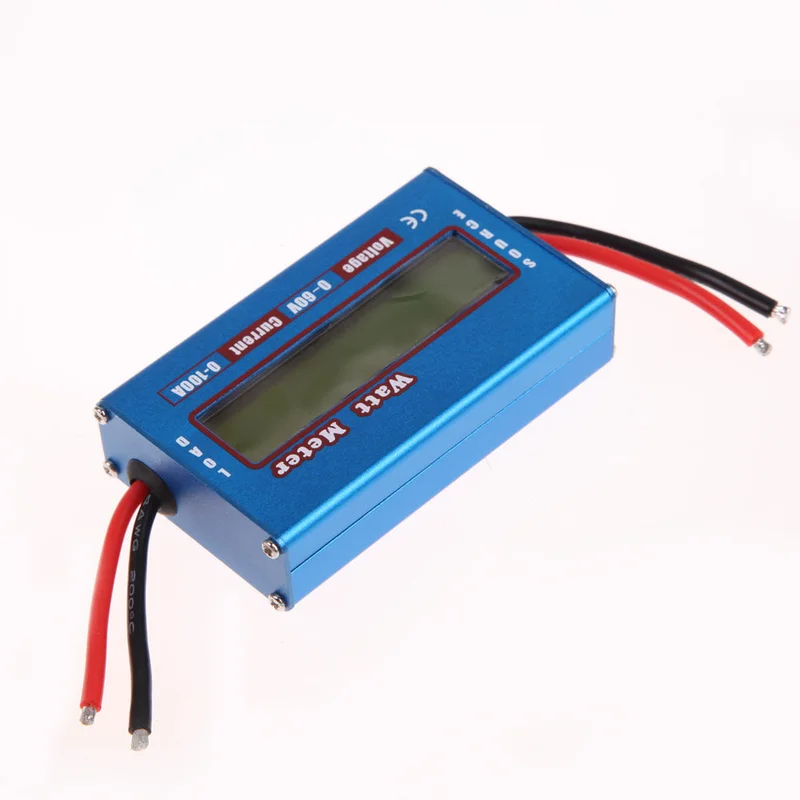

Easy-to-use DC power analyzer 4 – 60V 0 – 100A for measuring power flow in a low voltage circuit such as the flow – in Watts – and the cumulative rate of flow – in Watt-hours – from a solar panel or a DC wind generator into a battery.
Simple +positive/-negative (GND) two-wire input (Source) and two-wire output (Load) for series insertion into circuit.Two-line LCD – updated every 0.4 seconds – displays eight different values:
Features:
- Peak Performance Tracking: Accurately monitor peak current (AMPS) and peak power (watts) with this current energy meter, ensuring efficient and reliable energy management.
- Advanced Measurement Capabilities: Our watt volt amp meter offers precise measurement of power flow in DC circuits ranging from 4-20V and up to 100A, perfect for low-voltage sources like solar panels.
- Minimal Resistance Impact: This ammeter boasts a low circuit resistance of just
- User-Friendly Design: The solar wind analyzer features a simple + positive/- negative (GND) dual-line input and output for easy circuit integration without the need for complex setups.
- 001 Ohms, minimizing power loss and ensuring accurate readings.
Specifications:
- Power 0 – 6554 Watts to 0.1W resolution
- Current 0 – 100 Amps (max) 50A continuous to 0.01A resolution
- Voltage 4 – 60 Volts to 0.01V resolution
- Power flow rate 0 – 6554 Watt-hours (Wh) to 0.1Wh resolution
- Current flow rate 0 – 65 Amp-hours (Ah) to 0.001Ah resolution
- peak current in Amps
- peak power in Watts
- Voltage minimum (dip) over monitoring period
- Low in-circuit resistance just 0.001 Ohms negligible 7mA circuit load.
- Dimensions 84 x 50 x 20mm (L x W x D)
Package Contents:
- 1 x Watt Meter
- 1 x instructions
