Description
ARA4315V3T2

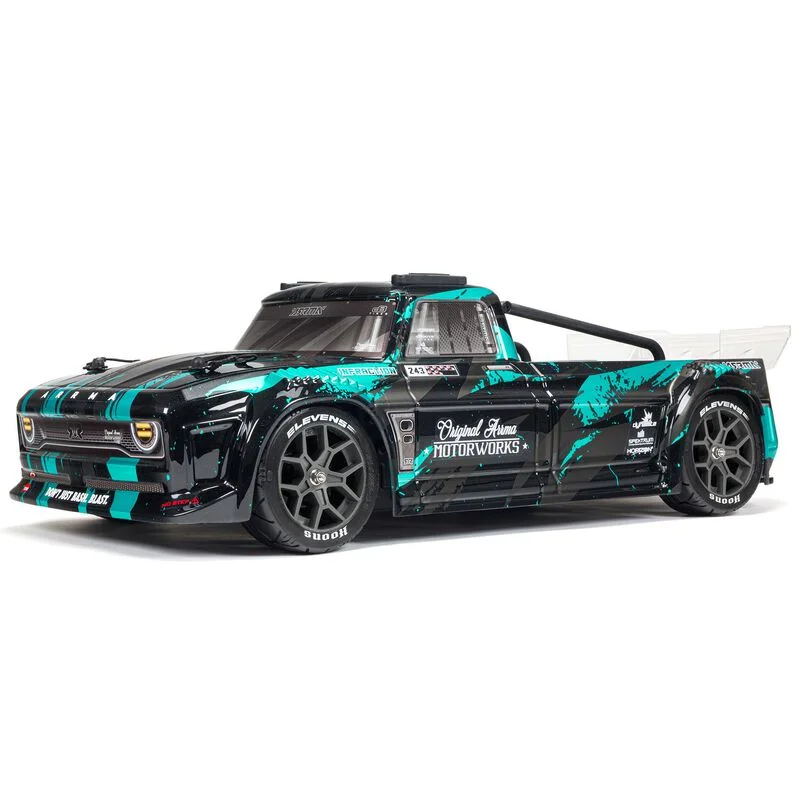

Hit the streets at high speed in resto-mod truck style with the 1/8 scale INFRACTION® 4X4 3S BLX All-Road RTR. It’s 65 mph+ capable in optimum conditions, with ARRMA® engineering and Spektrum™ electronics providing exceptional durability and control.
- 65+ mph capable using the optional speed pinion gear (included) and a 3S LiPo battery
- INFRACTION® Resto-Mod truck body available finished in two matte and gloss effect print scheme choices
- Brushless-ready transmission includes strong, metal-geared diffs
- dBoots® Hoons™ Elevens vented all-road tires mounted on tough, gunmetal colored wheels
- Installed Spektrum™ electronics featuring Smart technology and AVC® traction control
In The Box
- (1) ARRMA® INFRACTION® 4X4 3S BLX Brushless 1/8 4WD All-Road Street Bash Resto-Mod Truck
- (1) Spektrum™ Firma™ 100A Smart Waterproof* ESC
- (1) Spektrum™ Firma™ 3660 3900Kv Brushless Motor
- (1) Spektrum™ 2.4GHz DX3 Smart DSMR® 3-Channel Transmitter
- (1) Spektrum™ SR6200A AVC® Receiver
- (1) Spektrum™ SPMS651 7kg Waterproof* Metal-Geared Digital Servo
- (1) Product Manual
Needed to Complete
- (1) 2S or 3S Hardcase LiPo Battery** with EC5™ or IC5® Connector
- (1) Compatible LiPo Battery Charger
- (4) AA Transmitter Batteries
- **Maximum battery dimensions 6.5×2.01×1.89 in / 165x51x48mm. Minimum battery specs 5000mAh 50C
New Features
- Capable of 65+ mph with optional speed pinion gear (included) and 3S LiPo battery
- Available with signature INFRACTION® Resto-Mod body finished with two stunning matte and gloss effect print scheme choices
Proven 4X4 platform features
- Brushless-ready transmission with strong, metal-geared diffs
- Roof skids and roll bars for body protection
- Tunable high downforce wing
- dBoots® Hoons™ Elevens vented all-road tires mounted on tough, gunmetal colored wheels
- Front and rear sway bars for the ultimate all-road handling
- Large front foam bumper integrates with body for maximum protection
- Powerful Spektrum™ Firma™ 3660 3900Kv brushless motor
- Large rear diffuser reduces turbulence and drag
- Threaded oil-filled shocks for easy ride height adjustment
- Multi-adjustable body mounts
- Strong composite chassis
- Steering system with stone clearance
- Easy-access power module
- Easy-access diff removal
- Rubber shielded bearings throughout
- ARRMA® motor heatsink and cooling fan
- Safe-D Pinion
- Spektrum™ 2.4GHz DX3 Smart DSMR® transmitter and SR6200 AVC® receiver
- Spektrum™ S651 Digital Metal-Geared Steering Servo (7.27kg-cm / 101 oz-in /embed/HIWM7NXGtCM”>
Under The Hood
STRONG COMPOSITE CHASSIS
Contributing to the 4X4 3S BLX platform’s unstoppable performance are a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. A large front foam bumper integrates with body for maximum protection.
SIGNATURE EASY-ACCESS MODULAR DESIGN
The 1/8 scale INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck incorporates the signature ARRMA® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.
WHEELS AND TIRES
The dBoots® Hoons™ Elevens vented all-road tires are made of high-quality rubber for long-lasting durability and provide incredible traction in all surface conditions. The tires are glued to tough, gun-metal colored nylon wheels.
AERODYNAMIC BODY
The aerodynamically tuned INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck body includes a tough, high downforce wing. The body is available factory-finished in a choice of two stunning matte and gloss effect paint schemes.
SPEKTRUM™ RADIO AND ELECTRONICS
The INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck comes with a Spektrum™ DX3 DSMR® 3-channel transmitter and a factory-installed SR6200 receiver with AVC® on-demand traction control. These, plus the installed Spektrum™ Firma™ 100A Smart ESC, provide telemetry capability for following speed, battery voltage, and other data in real time.
OIL-FILLED SHOCKS
The oil-filled shocks include silicone O-rings and are threaded to allow for easy ride height adjustments. Combined with the front and rear double wishbone suspension, front and rear sway bars, and large rear diffuser, they give the INFRACTION® 4X4 3S BLX Street Bash Resto-Mod Truck the ultimate all-road handling.
* For details on waterproof standards, please see product instruction manuals.
Product Specifications
Product Weight 6.27lb (2.85kg) Tire Tread Elevens Vehicle Type All-Road Water-Resistant Yes Body Painted, Decaled and Trimmed Brakes Integral with ESC Pinion 20T Scale 1/8 Battery Sold Separately Ground Clearance 0.59 in (15mm) Power System 3S Product Width 10.12″ (257 mm) Radio Included Technology AVC and SMART Product Length 22.13″ (562 mm) Spur Gear 50T Suspension Independent Charger Sold Separately Differential 2 Gear Diffs Receiver Included Shock Type Oil-Filled, Coil-Over Springs Final Drive Ratio 7.12 Motor Type Brushless – Inrunner Rear Track 10.08 in (256mm) Speed Control Included Wheelbase 13.19″ (335 mm) Front Track 10.04 in (255mm) Battery Tray Dimensions 6.5×2.01×1.89 in / 165x51x48mm Internal Gear Ratio 2.85 Motor Size 3660-3900Kv Ball Bearings Rubber Shielded Bearings Throughout Chassis Molded Composite Completion Level Ready-To-Run Drivetrain 4WD Drive Type Forward/Brake/Reverse Product Height 6.34″ (161 mm) Top Speed 65+ Tire Compound White Wheel Hex Size 14mm Power Type Electric Gear Pitch 0.8MOD Servos Included
