Description

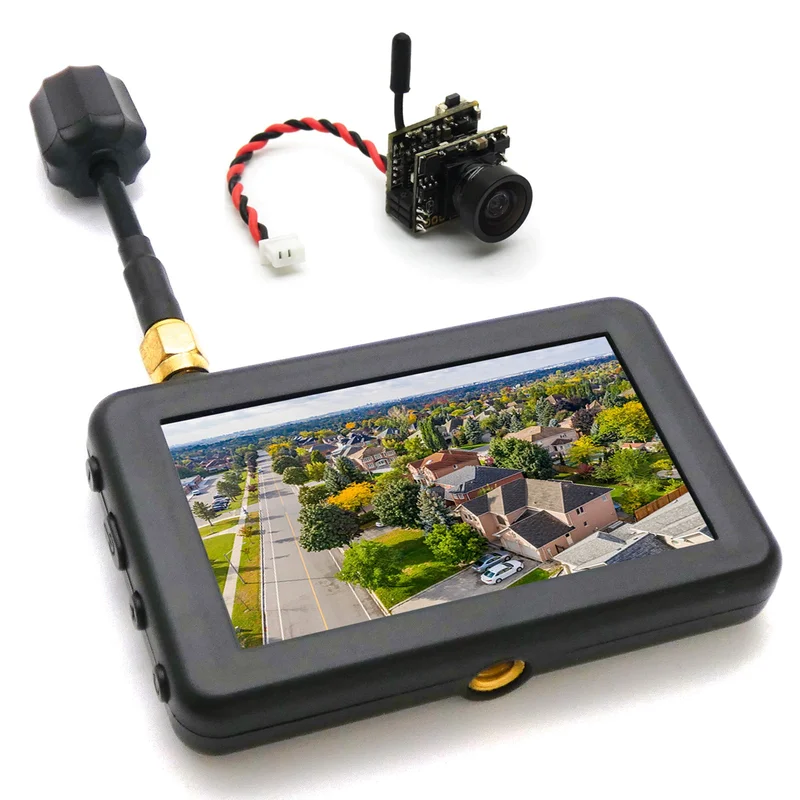

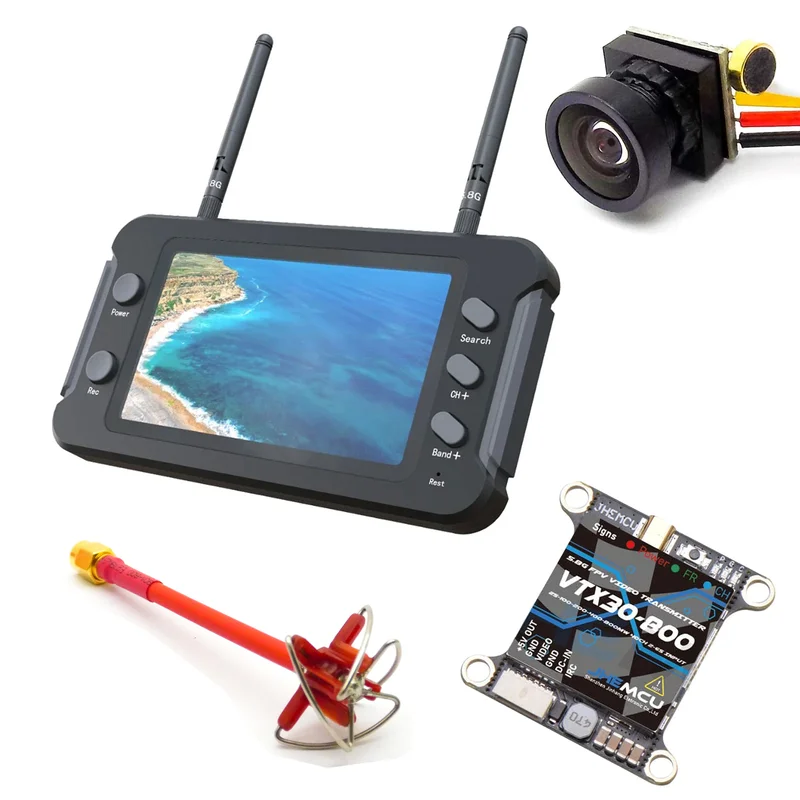

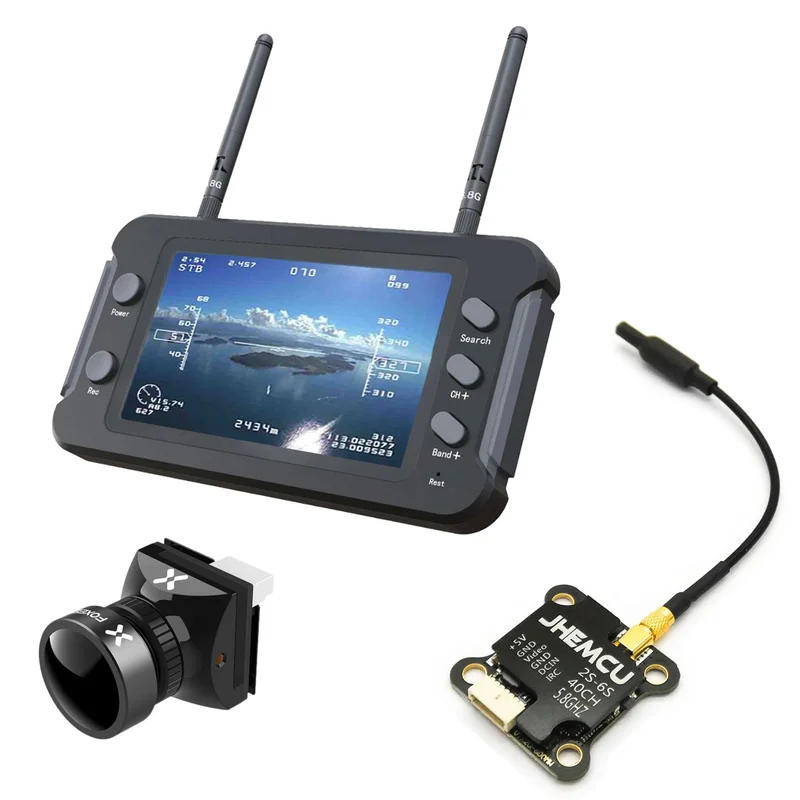

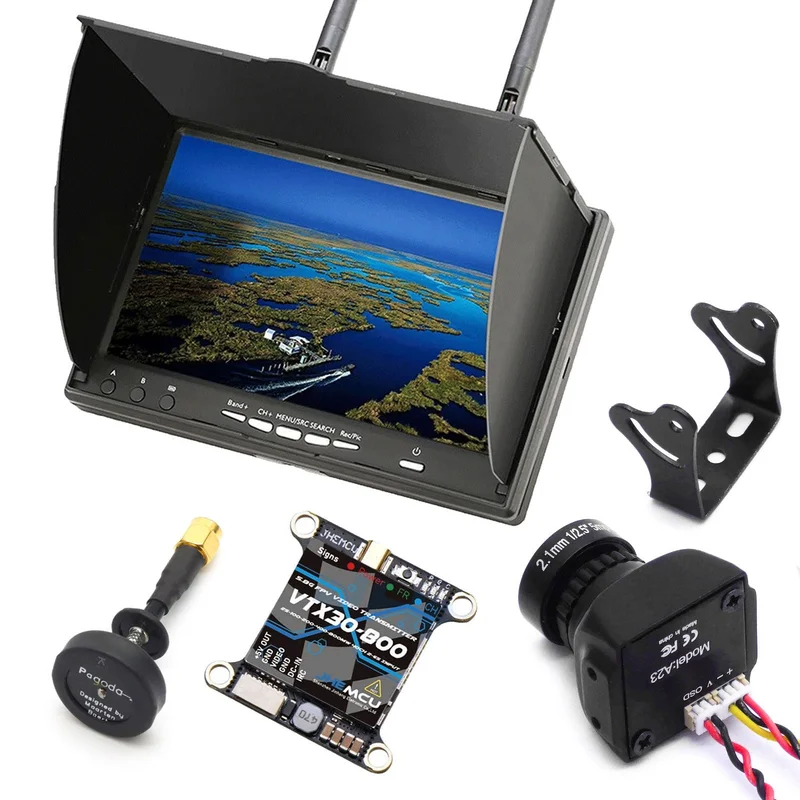

This Complete FPV Kit for Drones and RC Models:
This kit provides everything you need to add a live, recorded video feed to your drone or RC model, offering an immersive FPV experience with high-quality video transmission and recording.
FPV Monitor with DVR:
The included 5.8GHz Diversity FPV Monitor features a bright, sunlight-viewable 4.3-inch display for outdoor use. It also comes equipped with a built-in MicroSD DVR for recording your flights, a rechargeable 1200mAh battery for up to 3 hours of usage, and an auto-scan function for easy setup.
High-Performance Camera:
This kit includes the Micro 1000TVL FPV Camera with a 1/4″ CMOS sensor, 2.8mm lens, and a 90 Degrees field of view, delivering sharp, ultra-high-definition footage. Paired with the JHEMCU VTX20-600 5.8GHz Video Transmitter, this system provides clear, reliable video transmission with adjustable power from 25mW to 600mW.
5.8GHz Diversity FPV Monitor Specifications:
- Receiver Frequency: 5.8 GHz
- Dual Antenna Configuration: Diversity Receiver Antennas Supported
- Battery Capacity: Built-in 1200mAh Battery
- Battery Life: Approximately 3 Hours of Continuous Usage
- Voltage Compatibility: Supports Wide Voltage Charging (5-23V)
- Backup Power Sources: Compatible with 5V Mobile Power, 2S (7.4V), and 3S (11.1V) Batteries
- DVR Functionality: Record Video Content On-The-Go
- Display Size: 4.3 Inches
- Display Resolution: 800 x 480
- Aspect Ratio: 16:9 Widescreen
- Screen Type: IPS (In-Plane Switching) Screen
- Anti-Glare Design: Delicate Picture Quality with Reduced Outdoor Reflection
- Automatic Search: One-Click Automatic Frequency Search
- User-Friendly Design: Intuitive Interface for Enjoyable Flying Experience
VTX30-8600 5.8GHz Video Transmitter Specifications:
- Model: VTX30-800
- Input voltage: 7-26V(2-6S)
- BEC: 5V
- Number of channels: 40CH
- Transmitting power: PIT/25/100/200/400/800mW
- Interface: MMCX
- Size: 36x36mm
- Installation hole distance: 30.5*30.5mm M3
- Weight: 6.8g
- Support IRC power and channel adjustment
Micro 1000TVL Camera Specifications:
- Input Voltage: 3.3-5V
- Power Consumption: 80mA@ 5v
- Lux: 0.008Lux
- Lens: 2.8mm
- FOV: 90Degrees
- Sensor: 1/4″CMOS
- Format:PAL / NTSC ( Version Optional)
- Resolution: Ultra High Definition 1000TVL 1280×960
- SNR: 48db
- Gamma: 0.45
- White Balance: Auto
- Audio: Yes
- Weight: 1g (without cable)
Package Contents:
- 1x 5.8GHz FPV Diversity DVR Monitor w/ Internal Battery
- 1x 5.8GHz Adjustable 800mW Video Transmitter
- 1x Micro 1000TVL Camera
- 1x Transmitting Antenna
- 2x Receiving Antenna
