Description

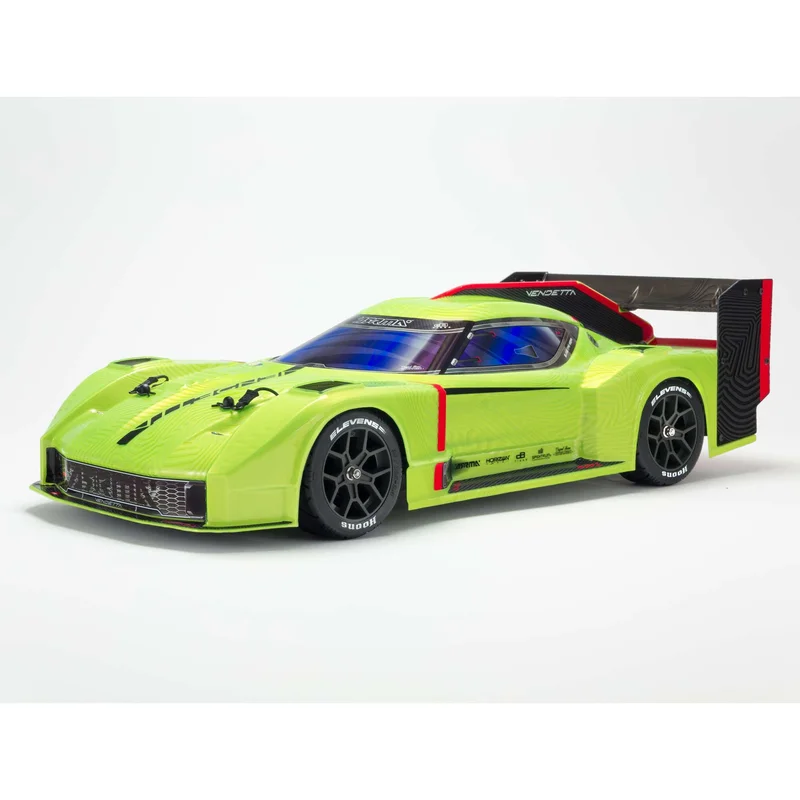

1/8 VENDETTA 4X4 3S BLX Brushless All-Road Speed Bash Racer ARA4319V3

Get in on the all-road speed bashing action with the 1/8 scale VENDETTA™ 4X4 3S BLX Speed Racer RTR. It’s capable of 70 mph+ speeds in optimum conditions — with ARRMA® engineering and Spektrum™ electronics providing exceptional durability and control.

New Features

• Optional pinion included for reaching 70 mph+ speeds (in optimal conditions with a 3S LiPo battery)
• Powerful Spektrum^™ Firma^™ 3660 3900Kv brushless motor
• Front and rear sway bars for the ultimate all-road handling
• Threaded oil-filled shocks for easy ride height adjustments
• Aerodynamically tuned VENDETTA^™ Speed Racer body with high and low downforce wings
• Available in two stunning, matte and gloss effect body paint schemes with scale decals
• Large front foam bumper integrates with body for maximum protection
• Large rear double diffuser reduces turbulence and drag
• dBoots^® Hoons Elevens vented all-road tires mounted on tough, gun-metal colored wheels
• Multi-adjustable body mounts

Proven 4X4 Platform Features

• Strong, 4S capable metal-geared diffs
• Brushless-ready transmission with 1.35 Mod input and main diff gears
• Strong composite chassis
• Extended height dirt defenders
• Front and rear double wishbone suspension
• Steering system with stone clearance
• Signature ARRMA^® modular design for easy maintenance
• Easy-access power module with dirt management
• Easy-access front and rear diff removal
• Easy access electronics module

• Rubber shielded bearings throughout
• ARRMA^® motor heatsink and cooling fan
• Safe-D Pinion
• Spektrum^™ 2.4GHz DX3 Smart DSMR^® transmitter and SR6200 AVC^® receiver
• Spektrum S651 Digital Metal Gear Steering Servo (7.27kg-cm / 101 oz-in /embed/Ffbln5H4kY4?autoplay=0&mute=1&autohide=2&border=0&wmode=opaque&enablejsapi=1&controls=1&showinfo=0&rel=0&mute=1″ allow=”autoplay” frameborder=”0″>


  STRONG COMPOSITE CHASSIS

  Features that contribute to the 4X4 3S BLX platform’s unstoppable performance include a strong composite chassis; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh and rubber-shielded bearings throughout. Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. A large front foam bumper integrates with body for maximum protection.

  SIGNATURE EASY-ACCESS MODULAR DESIGN

  The VENDETTA^™ 4X4 3S BLX Speed Racer RTR incorporates the signature ARRMA^® easy-access modular design. Separate, easily removable chassis modules for the power system, electronics, and differential components make routine maintenance fast and simple.

  WHEELS & TIRES

  The dBoots^® Hoons Elevens vented all-road tires are made of high-quality rubber for long-lasting durability and provide incredible traction in all surface conditions. The tires are glued to tough, gun-metal colored nylon wheels and include high-quality inserts for excellent tread support.

  AERODYNAMIC BODY

  The aerodynamically tuned VENDETTA^™ Speed Racer body includes tough high and low downforce wings. It’s available factory-finished in your choice of stunning green or blue matte and gloss effect paint schemes with scale decals.

  ™ RADIO AND ELECTRONICS” src=”https:///on/demandware.static/-/Sites-horizon-master/default/PDPImages/ARA4219V3_PP_05.jpg”>

  SPEKTRUM^™ RADIO AND ELECTRONICS

  The VENDETTA^™ 4X4 3S BLX Speed Racer RTR comes equipped with a Spektrum^™ DX3 DSMR^® 3-channel transmitter and a factory-installed SR6200 receiver with AVC^® on-demand traction control. These, plus the installed Spektrum^™ Firma^™ 100A Smart ESC, provide telemetry capability for following speed, battery voltage, and other data in real time.

  OIL-FILLED SHOCKS

  The oil-filled shocks include silicone O-rings and are threaded to allow for easy ride height adjustments. Combined with the front and rear double wishbone suspension, front and rear sway bars, and large rear double diffuser, they give the VENDETTA^™ 4X4 3S BLX Speed Racer the ultimate all-road handling.

  Specifications

  Approximate Assembly Time

  None Required

  Ball Bearings

  Rubber shielded bearings throughout

  Battery

  Sold Separately

  Battery Tray Dimensions

  6.49×2.01×1.89 in

  Body

  Painted, decaled, and trimmed

  Charger

  Sold Separately

  Chassis

  Molded Composite

  Completion Level

  Ready-To-Run

  Differential

  2 Gear Diffs

  Drive Type

  Forward/Brake/Reverse

  Drivetrain

  4WD

  Final Drive Ratio

  7.125

  Front Track

  10.31 in (262mm)

  Gear Pitch

  0.8m

  Inner Tire / Outer Wheel Diameter

  2.6 in

  Internal Gear Ratio

  2.85

  Motor Size

  3660

  Motor Type

  Brushless – Sensorless

  Pinion

  20T

  Power Type

  Electric

  Product Height

  6.22″ (158 mm)

  Product Length

  23.43″ (595 mm)

  Product Weight

  6.38 lb (2.9kg)

  Product Width

  10.43″ (265 mm)

  Radio

  Included

  Rear Track

  10.55 in (268mm)

  Receiver

  Included

  Scale

  1/8

  Servos

  Included

  Shock Type

  Oil-Filled, Coil-Over Springs

  Speed

  70+

  Speed Control

  Included

  Spur Gear

  50T

  Suspension

  Independent

  Technology

  AVC

  Tire Compound

  White

  Tire Tread

  dBoots® Hoons Elevens

  Vehicle Type

  On-Road

  Water-Resistant

  Yes

  Wheel Hex Size

  14mm

  Wheel Width

  1.38 in (35mm)

  Wheelbase

  13.11″ (333 mm)

  • Optional pinion included for reaching 70 mph+ speeds (on 3s)
  • Front and rear sway bars for the ultimate all-road handling
  • Threaded oil-filled shocks for easy ride height adjustments
  • Aerodynamically tuned VENDETTA Speed Racer body with high and low downforce wings
  • Available in two stunning, matte and gloss effect body paint schemes with scale decals
  • Large front foam bumper integrates with body for maximum protection
  • Large rear double diffuser reduces turbulence and drag
  • dBoots Hoons Elevens vented all-road tires mounted on tough, gun-metal colored wheels
  • Strong, 3S capable metal-geared diffs
  • Brushless-ready transmission with 1.35 Mod input and main diff gears
  • Strong composite chassis
  • Front and rear double wishbone suspension
  • Rubber shielded bearings throughout
  • Spektrum 2.4GHz DX3 Smart DSMR transmitter and SR6200 AVC receiver
  • Spektrum S651 Digital Metal Gear Steering Servo (7.27kg-cm / 101 oz-in @ 6V torque)
  • Spektrum Firma 3660 3900Kv brushless motor
  • Spektrum Firma 100A Smart ESC with IC5 connectors



  Completion Items

  Batteries

  SPMX52S100H5 – 7.4V 5000mAh 2S 100C Smart G2 Hardcase LiPo Battery: IC5

  SPMX53S100H5 – 11.1V 5000mAh 3S 100C Smart G2 Hardcase LiPo Battery: IC5

  FUG4300BP4 – AA Alkaline Battery (4)

   Spektrum Powerstage

  SPMXG2PS2 – Smart G2 Powerstage Bundle for Surface 2S

  SPMXG2PS3 – Smart G2 Powerstage Bundle for Surface 3S

   Charger

  SPMXC2020 – S1200 G2 AC 1x200W Smart Charger

  SPMXC2010 – S2200 G2 AC 2x200W Smart Charger

   Parts List

  ARA310992 Composite slider front driveshaft set

  ARA311103 Spur gear (50T,0.8Mod)

  ARA330685 C-Hubs (1 pair)

  ARA550093 dboots Elevens 35/085 2.4 split spoke

  ARA330683 Front suspension arms
